Only Moodle Administrators can complete the integration of Sowiso into Blackboard with LTI 1.3.
General LTI - IMS & Sowiso
Sowiso has IMS Learning Tools Interoperability to connect to your Learning Management System (LMS), like Canvas, Brightspace or Moodle. The LTI connection will let you sign in automatically without having to insert a username and password again. Those are synchronised with the LMS.
When setting up Sowiso as an external source in the LMS, you must share with Sowiso the e-mail and name of the users.
What information do I need for the Blackboard integration?
In order to connect using LTI 1.3, you need a:
-
url: use the url of Sowiso + /lti
Like this: https://cloud.sowiso.nl/lti
-
Public key: type key be either Keyset URL or RSA. For the Keyset URL, you can use the same url as above and then append /jwks, like https://cloud.sowiso.nl/lti/jwks
For the RSA key, please contact us. - Login URL: use the same url as above and then append /login, so https://cloud.sowiso.nl/lti/login
- Redirection URI: use the same url as above and then append /launch, so https://cloud.sowiso.nl/lti/launch
Then you need to share with us your
- Platform ID
- Client ID
- Deployment ID
- Public keyset URL
- Access token URL
- Authentication request URL
Setting up the integration between Sowiso and Blackboard using LTI 1.3 Step-by-step

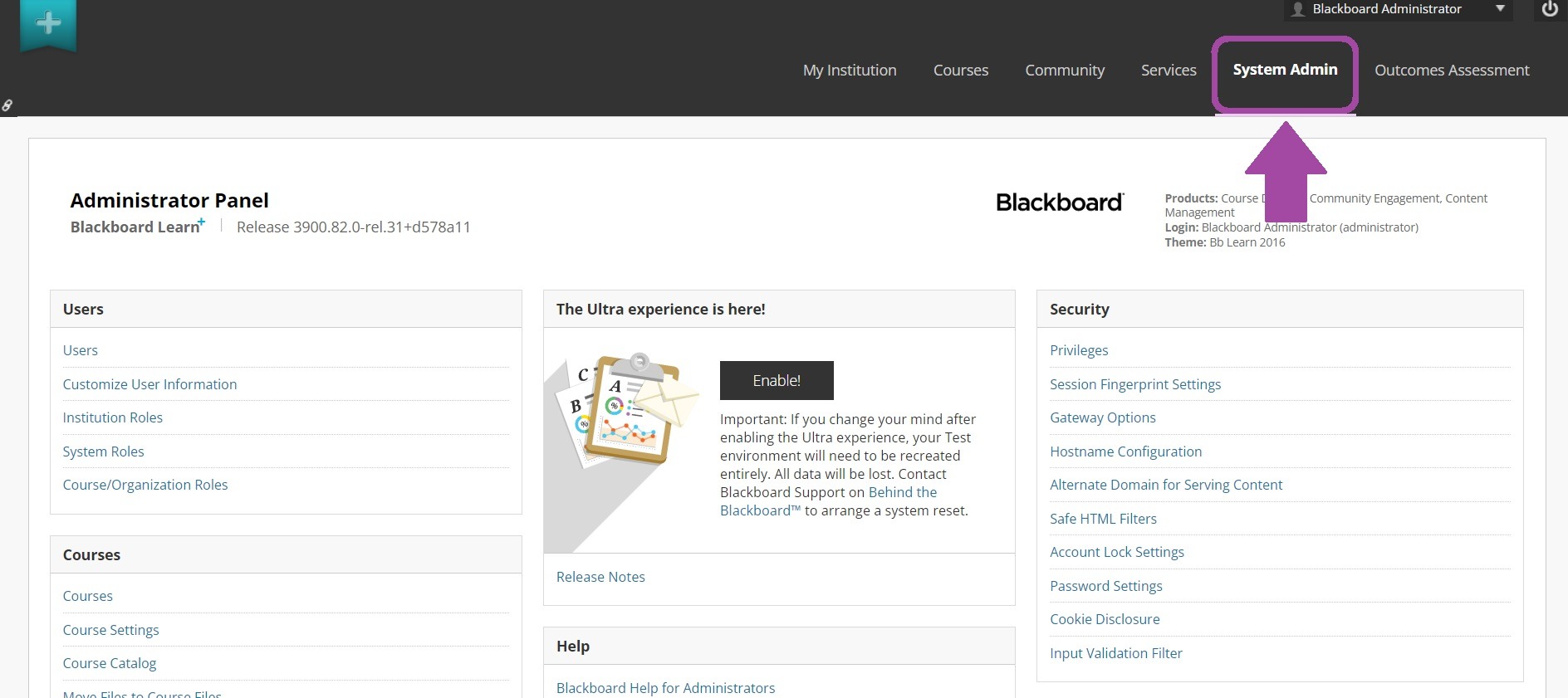

Step 1: Go To "System Admin"
In the upper right of your screen, click on "System Admin:.

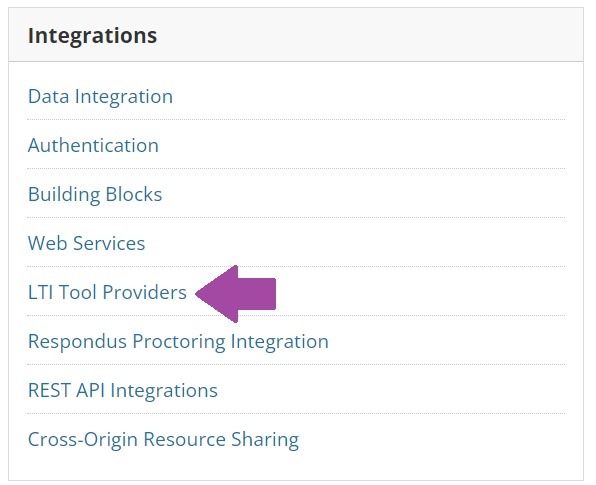

Step 2: Under Integrations, choose "LTI Tool Providers"

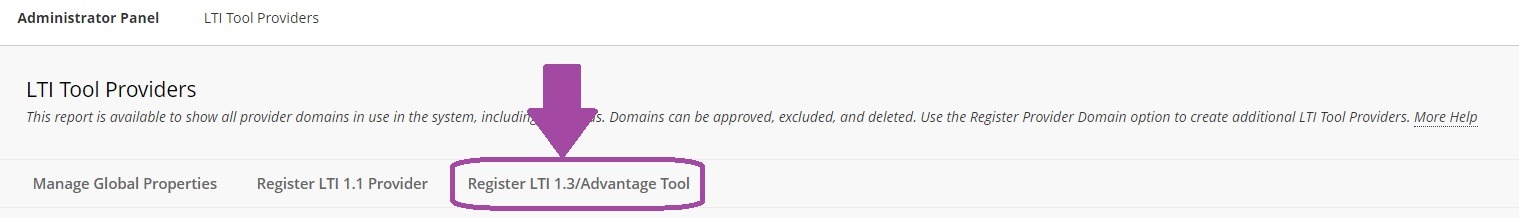

Step 3: Select Register LTI 1.3/Advantage Tool

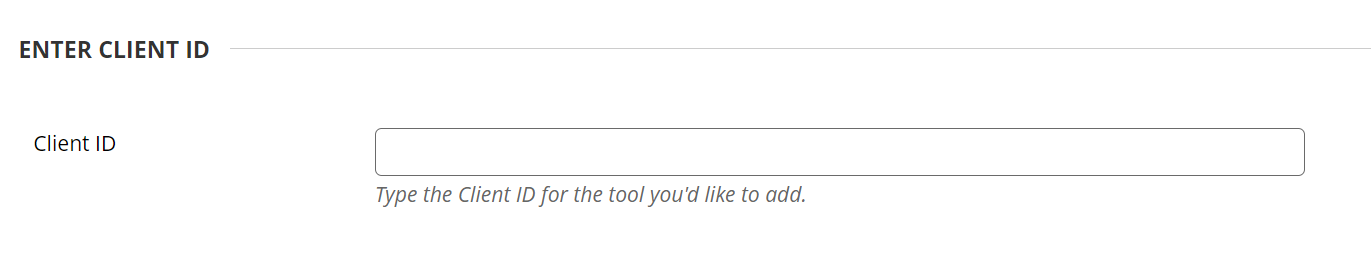

Step 4: Put the Client ID in
Please contact us to get the Client ID.
Â
Â
Step 5: Choose the settings for the tool
Once you fill in the Client ID, a new page will open up with some filled in fields. Make sure that the tool is "Approved". Tick the "User Fields to Send" and choose Role in Course, Name, Email Address. Click Submit.

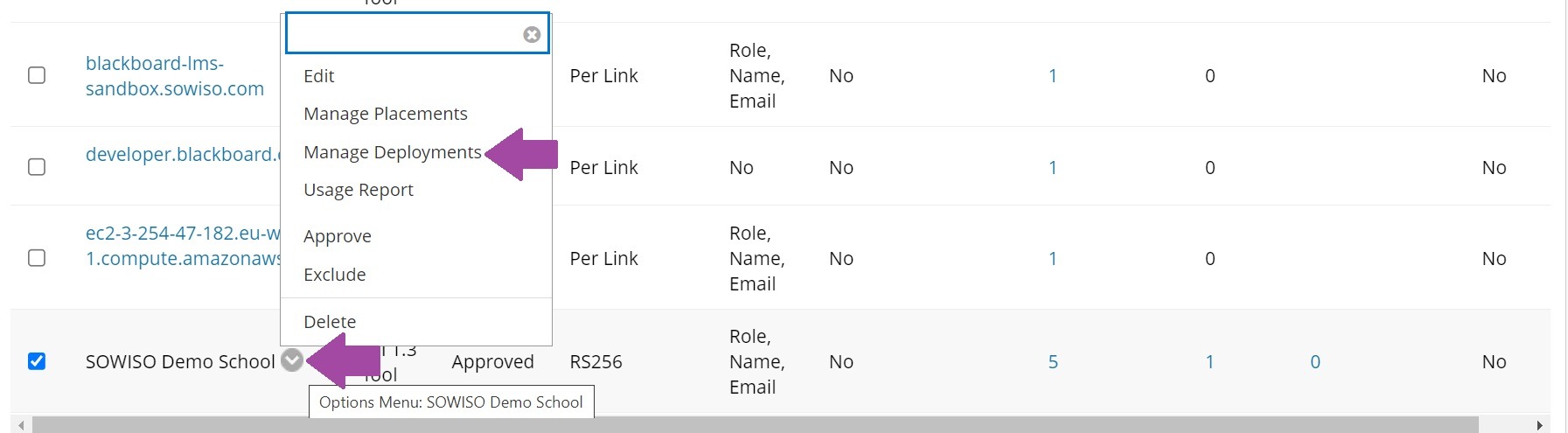

Step 6: Set up the Deployment
Go back to the Administration Panel-LTI Tool Providers page. Click on the arrow next to the Sowiso registration and choose "Manage Deployments".

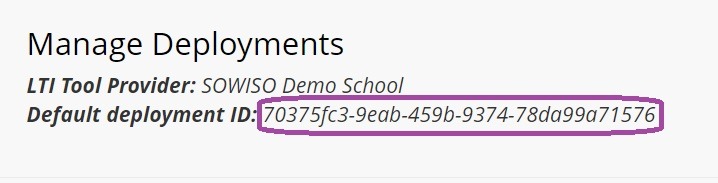

Step 6: Send us the Deployment
Copy the deployment ID at the top of the page, and send it over to our team.
Once we have confirmed that we have added the deployment on our side, the connection will be established.

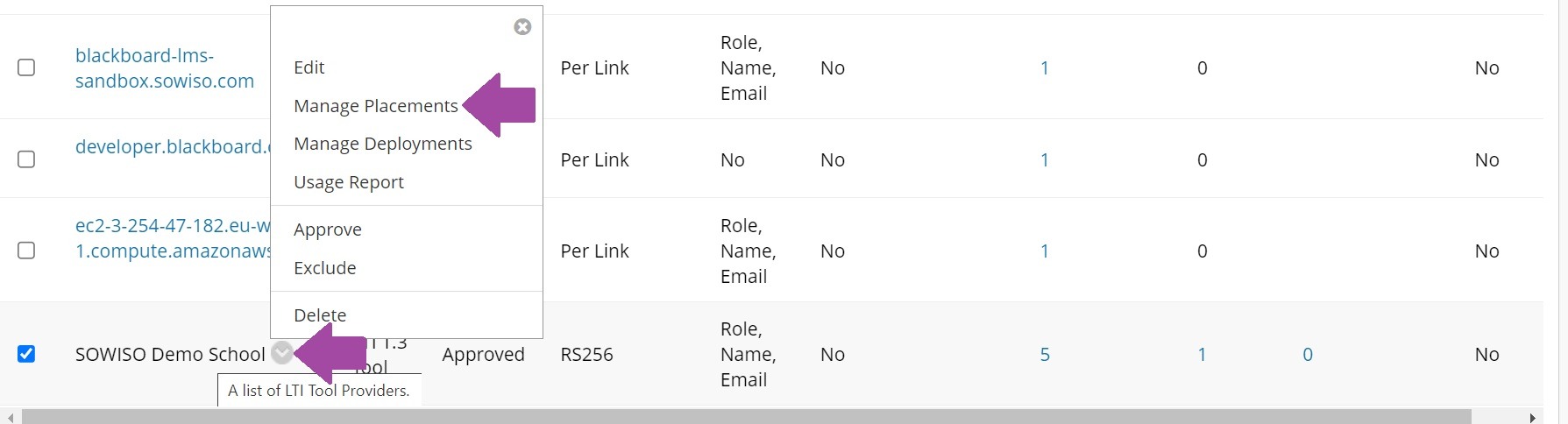

Step 7: Choose where to place Sowiso on Blackboard
Go to the Administration Panel-LTI Tool Providers. Click on the arrow next to the SOWISO LTI registration and choose "Manage Placements".
Visit the Blackboard website to learn more about the placements.
How to edit the grade pushback settings
Please visit this article.
